PVC multi hole pipe extrusion mould

FOB Reference Price:Get Latest Price
US $0.1-1 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SIWELL
Shaping Mode:
Plastic Extrusion Mould
Product Material:
Steel
Product:
plastic pipe mould
Mould type:
Moulds for PVC, PE, PP, wood plastic building profiles
Mould material:
Stainless steel 3Cr17, 3Cr17NiMoV, DIN2316
Mould component:
Die head, heat ring, calibrator, water tank
Mould cavity:
Single or multi
Extrusion speed:
3-5 meter per minute
Surface treatment:
Polish
Production machine:
CNC, electric wire cutting machine
Production capacity:
700-800 sets moulds per year
Certificates:
ISO90001
Export country:
Europe, Southeast Asia, Middle East,etc.
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
in wooden cases, Die head,calibrators, water tanks packed in separate cases
Port
Shanghai or Ningbo
Lead Time :
35-40 days

Detailed product description



Name

PVC multi hole pipe extrusion mould

Size

Different specification and different pressure grade

Mould material

3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request

Mould cavity

1 or multi-cavity

Mould composition

Die head, aluminum heating band, calibrators or calibration sleeve & water tank

Feature

Moulds for threading pipe, service pipe, drain pipe, postal-telecommunication pipe, gas pipe, silicon core pipe, etc.

Moulds for multi-color, multi-layer, steel-plastic & multi-material co-extrusion pipes;

Stable & efficient production

Test

Mould will be tested to get the satisfy sample before deliver

Sample

Sample will be arranged by express courier for customer approval

Advantage

The technologies of one mould with multi-cavities and one mould with multi-channels

Lead time

35-40 days

Package

Poly wood case for exporting, each mould will be cleaned before packing.

Quality assurance

ISO9001





 Moulds construction





 Comman pipe material and cavities

.jpg



Moulds example

.jpg



 Moulds making process

Technical Process-1Technical Process-2



Moulds trial

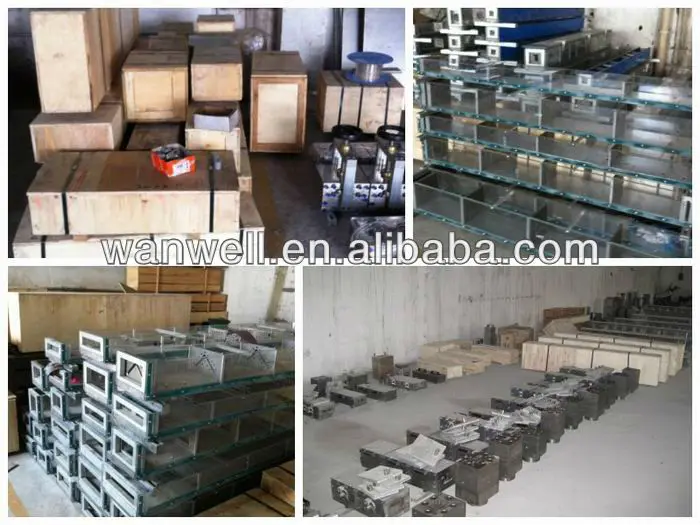

Moulds packing before deliver





Our company introduction



1. Basic information





2. Production machinery

Production Machinery



3. Certificate



4. Our office and sample room



5. Company location

With a group of enthusiastic marketing and sales executives’ effort, Siwell moulds are exported to Iran, U.A.E, India,Turkey, Singapore, Thailand, Russia,Australia, South Africa and Germany etc
