pvc pipe extrusion die design

FOB Reference Price:Get Latest Price
US $0.1-1 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SIWELL
Shaping Mode:
Plastic Extrusion Mould
Product Material:
Steel
Product:
plastic pipe mould
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
in wooden cases, Die head,calibrators, water tanks packed in separate cases
Port
Shanghai or Ningbo
Lead Time :
35-40 days

Detailed product description



Name

Extrusion die for PVC pipe

Size

Different specification and different pressure grade

Mould material

3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request

Mould cavity

1 or multi-cavity

Mould composition

Die head, aluminum heating band, calibrators or calibration sleeve & water tank

Feature

Moulds for threading pipe, service pipe, drain pipe, postal-telecommunication pipe, gas pipe, silicon core pipe, etc.

Moulds for multi-color, multi-layer, steel-plastic & multi-material co-extrusion pipes;

Stable & efficient production

Test

Mould will be tested to get the satisfy sample before deliver

Sample

Sample will be arranged by express courier for customer approval

Advantage

The technologies of one mould with multi-cavities and one mould with multi-channels

Lead time

35-40 days

Package

Poly wood case for exporting, each mould will be cleaned before packing.

Quality assurance

ISO9001

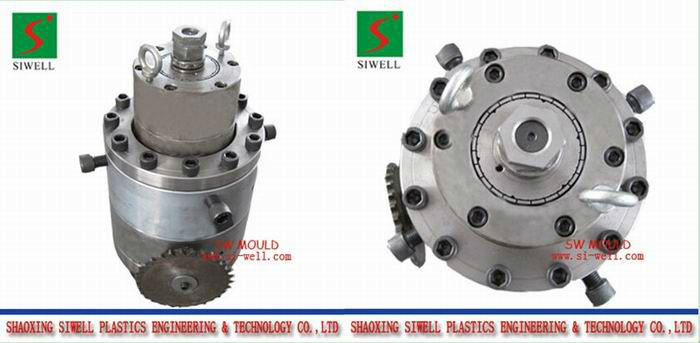

 Mould example



.jpg

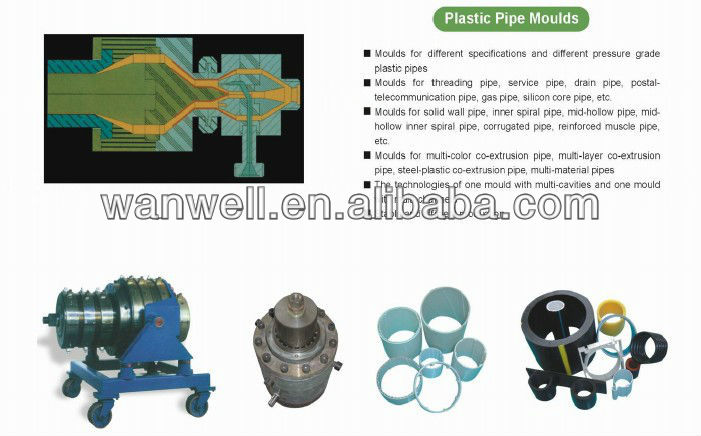

 Moulds construction



.jpg

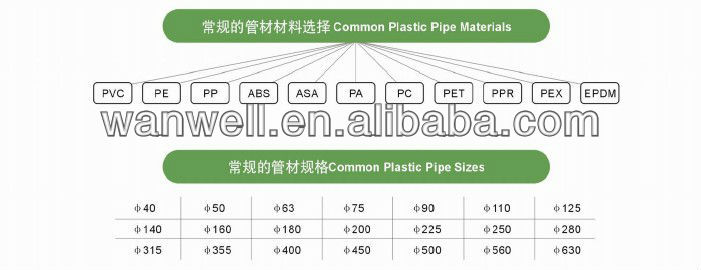

Comman pipe material and sizes

.jpg



 Moulds making process

Technical Process-1Technical Process-2



Moulds trial

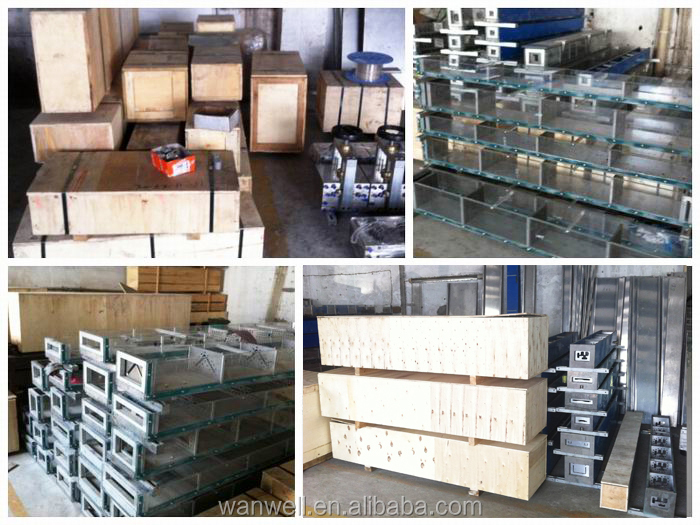

Moulds packing before deliver





Our company introduction



1. Basic information





2. Production machinery

Production Machinery



3. Certificate



4. Our office and sample room



5. Company location



With a group of enthusiastic marketing and sales executives’ effort, Siwell moulds are exported to Iran, U.A.E, India,Turkey, Singapore, Thailand, Russia,Australia, South Africa and Germany etc



Our exhibition show and customer meeting

initpintu__



If  you are interested in our moulds,

Pls just feel free to send us your  inquiry and show us your sample picture or drawings.

We will try our best to quote the competitive price for you.
